ChatGPT Magic Storybook

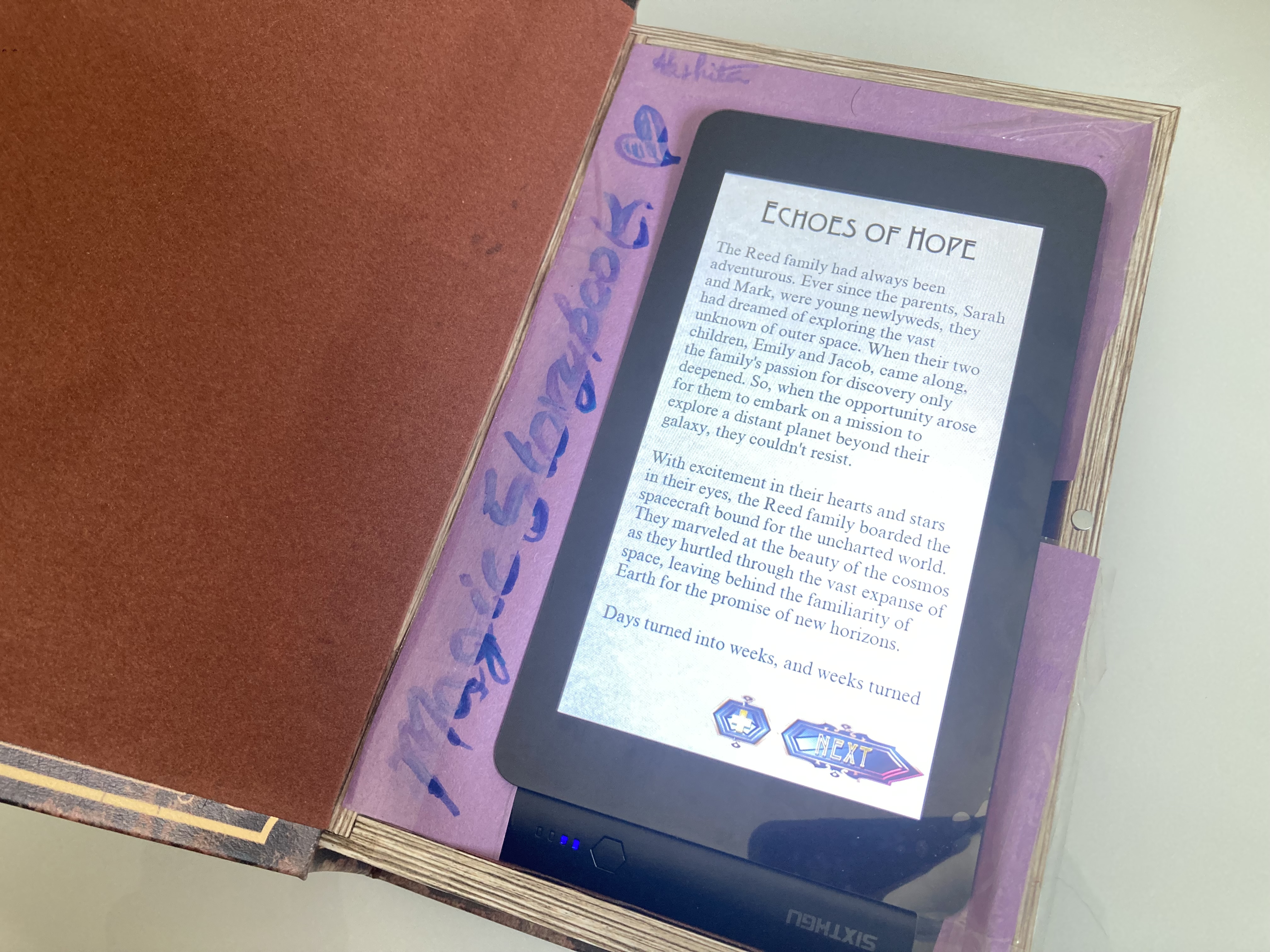

The ChatGPT Magic Storybook is a complex engineering project that is designed to allow users to generate a AI created fictional story based on a user input. The project uses the capabilities of the Raspberry Pi Software System to create a display that can be coded to take user input and be sent to ChatGPT to process using an API key. However, despite the project sounding easy, I faced many technincal difficulties throughout the project, including trouble oning the Raspberry Pi, my libraries not working, and the struggle to add a keyboard system. Still, despite that, I perservered through, working around my problems by using my resources and being patient.
| Akshita S | Mountain House High School | Computer Science | CyberSecurity | Incoming Senior |
Final Milestone
For my final milestone, I managed to get the keyboard to function, allowing me to complete my project. At first, I tried to create a keyboard using pygame however, when that didn’t work, I decided to switch to the Vkeyboard library, which was more of a success. Eventually, once I got the keyboard button to function and added to enter button, I finished my ChatGPT Magic Storybook project. Despite the struggles I faced to complete my projects, the 3 weeks I spent in BlueStamp greatly helped me grow as a engineer and coder. I learned a variety of troubleshooting techniques, terminal commands, as well as basics of the Raspberry Pi system. Additionally, I learned about the importance of perseverance and patience when dealing with challenges that are a struggle to overcome. As I continue towards developing my career, I can’t wait to continue applying and growing what I learned.
Second Milestone
For my second milestone, I managed to get the necessary python libraries working for my software code. Due to my systems’s unability to find the libraries, I had to manually install each and every single library myself. IT WAS TIRING. At first, I tried Pip install however when that didn’t work, I decided to switch to a better package manager: Anaconda. However, _ that also didn’t work due to Anaconda NOT supporting Raspberry Pi, making use switch to Anaconda’s little brother, Miniconda. Once I installed Miniconda, I reinstalled all the libraries, but then we faced _another issue when installing the Python Speech Recognition library. To put to perspective, the Speech Recogniction library only supports python versions 10 and 11, but I had python version 13, making the systems incompatible. Therefore, we had to switch the user input from vocal input to keyboard input, changing a key part of my project. This modification gave way for the final step in the completion of my project.
First Milestone
For my first milestone, I connected my computer to the raspberry pi. In the span of four days, I faced many challenging rigours of pairing my Windows desktop to the Raspberry Pi operating system. On Monday, I was unable to install the Pi operating system from the Imager due to port incompatibility, resulting in me having to wait a day for an USB cable. Later, on Wednesday, when I install the pi, I tried to SSH my computer to the raspberry pi. However, that did not work. After spending 2 days troubleshooting the problem, we solved it once I connected the raspberry pi to the display. Once connected to the display, we found out that the raspberry pi was not connecting to my home internet, resulting in me having to manually connect it. Once the WiFi was connected, I was able to establish an SSH connection with my computer, solving my week worth long struggle. Due to this accomplishment, I was allowed to start the software implementation of my project.

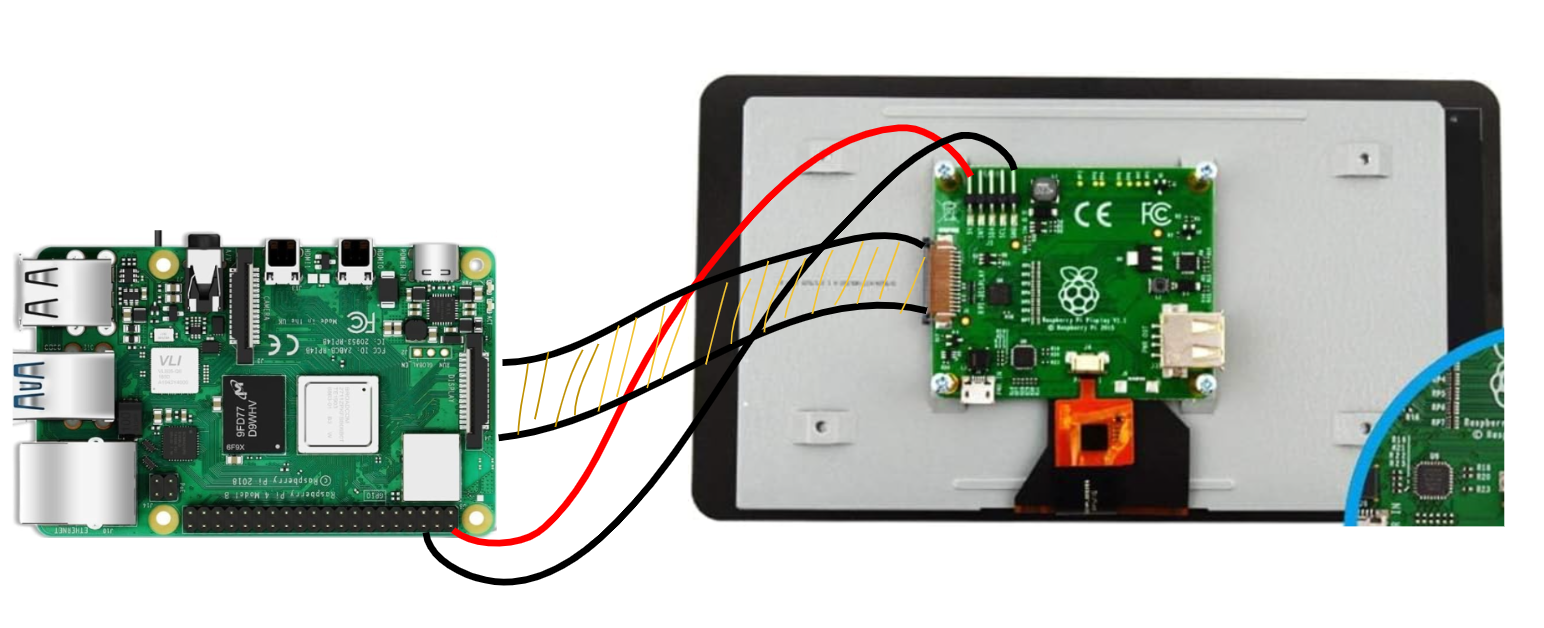

Schematics
Code
# SPDX-FileCopyrightText: 2023 Melissa LeBlanc-Williams for Adafruit Industries
#
# SPDX-License-Identifier: MIT
import threading
import sys
import os
import re
import time
import argparse
import math
import configparser
from enum import Enum
from collections import deque
import keyboardlayout as kl
import keyboardlayout.pygame as klp
#import board
#import digitalio
#import neopixel
from openai import OpenAI
import pygame
from pygame_vkeyboard import *
from rpi_backlight import Backlight
from adafruit_led_animation.animation.pulse import Pulse
# Base Path is the folder the script resides in
BASE_PATH = os.path.dirname(sys.argv[0])
if BASE_PATH != "":
BASE_PATH += "/"
# General Settings
STORY_WORD_LENGTH = 800
#REED_SWITCH_PIN = board.D17
API_KEYS_FILE = "~/keys.txt"
PROMPT_FILE = "/boot/bookprompt.txt"
# Quit Settings (Close book QUIT_CLOSES within QUIT_TIME_PERIOD to quit)
QUIT_CLOSES = 3
QUIT_TIME_PERIOD = 5 # Time period in Seconds
QUIT_DEBOUNCE_DELAY = 0.25 # Time to wait before counting next closeing
# Neopixel Settings
# Image Settings
WELCOME_IMAGE = "welcome.png"
BACKGROUND_IMAGE = "paper_background.png"
LOADING_IMAGE = "loading.png"
BUTTON_BACK_IMAGE = "button_back.png"
BUTTON_NEXT_IMAGE = "button_next.png"
BUTTON_NEW_IMAGE = "button_new.png"
BUTTON_ENTER_IMAGE= "download.png"
# Asset Paths
IMAGES_PATH = BASE_PATH + "images/"
FONTS_PATH = BASE_PATH + "fonts/"
# Font Path & Size
TITLE_FONT = (FONTS_PATH + "Desdemona Black Regular.otf", 48)
TITLE_COLOR = (0, 0, 0)
TEXT_FONT = (FONTS_PATH + "times new roman.ttf", 24)
TEXT_COLOR = (0, 0, 0)
# Delays Settings
# Used to control the speed of the text
WORD_DELAY = 0.1
TITLE_FADE_TIME = 0.05
TITLE_FADE_STEPS = 25
TEXT_FADE_TIME = 0.25
TEXT_FADE_STEPS = 51
ALSA_ERROR_DELAY = 0.5 # Delay to wait after an ALSA errors
# Whitespace Settings (in Pixels)
PAGE_TOP_MARGIN = 20
PAGE_SIDE_MARGIN = 20
PAGE_BOTTOM_MARGIN = 0
PAGE_NAV_HEIGHT = 100
EXTRA_LINE_SPACING = 0
PARAGRAPH_SPACING = 30
# ChatGPT Parameters
SYSTEM_ROLE = "You are a master AI Storyteller that can tell a story of any length."
CHATGPT_MODEL = "gpt-3.5-turbo" # You can also use "gpt-4", which is slower, but more accurate
WHISPER_MODEL = "whisper-1"
# Speech Recognition Parameters
ENERGY_THRESHOLD = 300 # Energy level for mic to detect
RECORD_TIMEOUT = 30 # Maximum time in seconds to wait for speech
# Do some checks and Import API keys from API_KEYS_FILE
config = configparser.ConfigParser()
#if os.geteuid() != 0:
# print("Please run this script as root.")
# sys.exit(1)
#username = os.environ["SUDO_USER"]
user_homedir = os.path.expanduser("/home/akshita")
API_KEYS_FILE = API_KEYS_FILE.replace("~", user_homedir)
print(os.path.expanduser(API_KEYS_FILE))
config.read(os.path.expanduser(API_KEYS_FILE))
if not config.has_section("openai"):
print("Please make sure API_KEYS_FILE points to a valid file.")
sys.exit(1)
if "OPENAI_API_KEY" not in config["openai"]:
print(
"Please make sure your API keys file contains an OPENAI_API_KEY under the openai section."
)
sys.exit(1)
if len(config["openai"]["OPENAI_API_KEY"]) < 10:
print("Please set OPENAI_API_KEY in your API keys file with a valid key.")
sys.exit(1)
openai = OpenAI(
# This is the default and can be omitted
api_key=config["openai"]["OPENAI_API_KEY"],
)
# Check that the prompt file exists and load it
if not os.path.isfile(PROMPT_FILE):
print("Please make sure PROMPT_FILE points to a valid file.")
sys.exit(1)
def strip_fancy_quotes(text):
text = re.sub(r"[\u2018\u2019]", "'", text)
text = re.sub(r"[\u201C\u201D]", '"', text)
return text
class Position(Enum):
TOP = 0
CENTER = 1
BOTTOM = 2
LEFT = 3
RIGHT = 4
class Button:
def __init__(self, x, y, image, action, draw_function):
self.x = x
self.y = y
self.image = image
self.action = action
self._width = self.image.get_width()
self._height = self.image.get_height()
self._visible = False
self._draw_function = draw_function
def is_in_bounds(self, position):
x, y = position
return (
self.x <= x <= self.x + self.width and self.y <= y <= self.y + self.height
)
def show(self):
self._draw_function(self.image, self.x, self.y)
self._visible = True
@property
def width(self):
return self._width
@property
def height(self):
return self._height
@property
def visible(self):
return self._visible
class Textarea:
def __init__(self, x, y, width, height):
self.x = x
self.y = y
self.width = width
self.height = height
@property
def size(self):
return {"width": self.width, "height": self.height}
class Book:
def __init__(self, rotation=180):
self.paragraph_number = 0
self.page = 0
self.pages = []
self.stories = []
self.story = 0
self.rotation = rotation
self.images = {}
self.fonts = {}
self.buttons = {}
self.width = 0
self.height = 0
self.textarea = None
self.screen = None
self.saved_screen = None
self._sleeping = False
self.sleep_check_delay = 0.1
self._sleep_check_thread = None
self._sleep_request = False
self._running = True
self._busy = False
self._loading = False
self.text= ""
self.keyboardOn= False
self.prompt=""
# Use a Double Ended Queue to handle the heavy lifting
self._closing_times = deque(maxlen=QUIT_CLOSES)
# Use a cursor to keep track of where we are in the text area
self.cursor = {"x": 0, "y": 0}
self._prompt = ""
def start(self):
# Output to the LCD instead of the console
os.putenv("DISPLAY", ":0")
# Initialize the display
pygame.init()
self.screen = pygame.display.set_mode((0, 0), pygame.FULLSCREEN)
pygame.mouse.set_visible(False)
self.screen.fill((255, 255, 255))
self.width = self.screen.get_height()
self.height = self.screen.get_width()
# Preload welcome image and display it
self._load_image("welcome", WELCOME_IMAGE)
self.display_welcome()
# Load the prompt file
with open(PROMPT_FILE, "r") as f:
self._prompt = f.read()
# Preload remaining images
self._load_image("background", BACKGROUND_IMAGE)
self._load_image("loading", LOADING_IMAGE)
# Preload fonts
self._load_font("title", TITLE_FONT)
self._load_font("text", TEXT_FONT)
# Add buttons
back_button_image = pygame.image.load(IMAGES_PATH + BUTTON_BACK_IMAGE)
next_button_image = pygame.image.load(IMAGES_PATH + BUTTON_NEXT_IMAGE)
new_button_image = pygame.image.load(IMAGES_PATH + BUTTON_NEW_IMAGE)
enter_button_image = pygame.image.load(IMAGES_PATH + BUTTON_ENTER_IMAGE)
button_spacing = (
self.width
- (
back_button_image.get_width()
+ next_button_image.get_width()
+ new_button_image.get_width()
)
) // 4
button_ypos = (
self.height
- PAGE_NAV_HEIGHT
+ (PAGE_NAV_HEIGHT - next_button_image.get_height()) // 2
)
self._load_button(
"back",
button_spacing,
button_ypos,
back_button_image,
self.previous_page,
self._display_surface,
)
self._load_button(
"enter",
200,
200,
enter_button_image,
self._make_story_prompt,
self._display_surface,
)
self._load_button(
"new",
button_spacing * 2 + back_button_image.get_width(),
button_ypos,
new_button_image,
self.new_story,
self._display_surface,
)
self._load_button(
"next",
button_spacing * 3
+ back_button_image.get_width()
+ new_button_image.get_width(),
button_ypos,
next_button_image,
self.next_page,
self._display_surface,
)
# Add Text Area
self.textarea = Textarea(
PAGE_SIDE_MARGIN,
PAGE_TOP_MARGIN,
self.width - PAGE_SIDE_MARGIN * 2,
self.height - PAGE_NAV_HEIGHT - PAGE_TOP_MARGIN - PAGE_BOTTOM_MARGIN,
)
# Start the sleep check thread after everything is initialized
self._sleep_check_thread = threading.Thread(target=self._handle_sleep)
self._sleep_check_thread.start()
def deinit(self):
self._running = False
# self._sleep_check_thread.join()
# self._load_thread.join()
#self.backlight.power = True
def _handle_sleep(self):
#reed_switch = digitalio.DigitalInOut(REED_SWITCH_PIN)
#reed_switch.direction = digitalio.Direction.INPUT
#reed_switch.pull = digitalio.Pull.UP
while self._running:
if self._sleeping: # Book Open
self._wake()
elif not self._sleeping:
self._sleep()
time.sleep(self.sleep_check_delay)
while self._running:
if self._loading:
time.sleep(0.1)
# Turn off the Neopixels
# Handle loading color by setting the loading flag
# Handle other status colors by setting the neopixels
def handle_events(self):
if not self._sleeping:
for event in pygame.event.get():
if event.type == pygame.QUIT:
raise SystemExit
if event.type == pygame.MOUSEBUTTONDOWN:
self._handle_mousedown_event(event)
#time.sleep(0.1)
def _handle_mousedown_event(self, event):
if event.button == 1:
# If button pressed while visible, trigger action
coords = self._rotate_mouse_pos(event.pos)
for button in self.buttons.values():
if button.visible and button.is_in_bounds(coords):
button.action()
def _rotate_mouse_pos(self, point):
# Recalculate the mouse position based on the rotation of the screen
# So that we have the coordinates relative to the upper left corner of the screen
angle = 360 - self.rotation
y, x = point
x -= self.width // 2
y -= self.height // 2
x, y = x * math.sin(math.radians(angle)) + y * math.cos(
math.radians(angle)
), x * math.cos(math.radians(angle)) - y * math.sin(math.radians(angle))
x += self.width // 2
y += self.height // 2
return (round(x), round(y))
def _load_image(self, name, filename):
try:
image = pygame.image.load(IMAGES_PATH + filename)
self.images[name] = image
except pygame.error:
pass
def _load_button(self, name, x, y, image, action, display_surface):
self.buttons[name] = Button(x, y, image, action, display_surface)
def _load_font(self, name, details):
self.fonts[name] = pygame.font.Font(details[0], details[1])
def _display_surface(self, surface, x=0, y=0, target_surface=None):
# Display a surface either positionally or with a specific x,y coordinate
buffer = self._create_transparent_buffer((self.width, self.height))
buffer.blit(surface, (x, y))
if target_surface is None:
buffer = pygame.transform.rotate(buffer, self.rotation)
self.screen.blit(buffer, (0, 0))
else:
target_surface.blit(buffer, (0, 0))
def _fade_in_surface(self, surface, x, y, fade_time, fade_steps=50):
background = self._create_transparent_buffer((self.width, self.height))
self._display_surface(self.images["background"], 0, 0, background)
buffer = self._create_transparent_buffer(surface.get_size())
fade_delay = round(
fade_time / fade_steps * 1000
) # Time to delay in ms between each fade step
def draw_alpha(alpha):
buffer.blit(background, (-x, -y))
surface.set_alpha(alpha)
buffer.blit(surface, (0, 0))
self._display_surface(buffer, x, y)
pygame.display.update()
for alpha in range(0, 255, round(255 / fade_steps)):
draw_alpha(alpha)
pygame.time.wait(fade_delay)
if self._sleep_request:
draw_alpha(255) # Finish up quickly
return
def display_current_page(self):
self._busy = True
self._display_surface(self.images["background"], 0, 0)
pygame.display.update()
print(f"Loading page {self.page} of {len(self.pages)}")
page_data = self.pages[self.page]
# Display the title
if page_data["title"]:
self._display_title_text(page_data["title"])
self._fade_in_surface(
page_data["buffer"],
self.textarea.x,
self.textarea.y + page_data["text_position"],
TEXT_FADE_TIME,
TEXT_FADE_STEPS,
)
# Display the navigation buttons
if self.page > 0 or self.story > 0:
self.buttons["back"].show()
if self.page != (len(self.pages)-1):
self.buttons["next"].show()
print("next is displayed")
self.buttons["new"].show()
print("new is displayed")
pygame.display.update()
while True:
events=pygame.event.get()
for event in events:
if event.type == pygame.MOUSEBUTTONDOWN:
self._handle_mousedown_event(event)
if event.type == pygame.QUIT:
print("Quit the pygame")
self._running= False
return
self._busy = False
@staticmethod
def _create_transparent_buffer(size):
if isinstance(size, (tuple, list)):
(width, height) = size
elif isinstance(size, dict):
width = size["width"]
height = size["height"]
else:
raise ValueError(f"Invalid size {size}. Should be tuple, list, or dict.")
buffer = pygame.Surface((width, height), pygame.SRCALPHA, 32)
buffer = buffer.convert_alpha()
return buffer
def _display_title_text(self, text, y=0):
# Render the title as multiple lines if too big
lines = self._wrap_text(text, self.fonts["title"], self.textarea.width)
self.cursor["y"] = y
delay_value = WORD_DELAY
for line in lines:
words = line.split(" ")
self.cursor["x"] = (
self.textarea.width // 2 - self.fonts["title"].size(line)[0] // 2
)
for word in words:
text = self.fonts["title"].render(word + " ", True, TITLE_COLOR)
if self._sleep_request:
delay_value = 0
self._display_surface(
text,
self.cursor["x"] + self.textarea.x,
self.cursor["y"] + self.textarea.y,
)
else:
self._fade_in_surface(
text,
self.cursor["x"] + self.textarea.x,
self.cursor["y"] + self.textarea.y,
TITLE_FADE_TIME,
TITLE_FADE_STEPS,
)
pygame.display.update()
self.cursor["x"] += text.get_width()
time.sleep(delay_value)
self.cursor["y"] += self.fonts["title"].size(line)[1]
def _title_text_height(self, text):
lines = self._wrap_text(text, self.fonts["title"], self.textarea.width)
height = 0
for line in lines:
height += self.fonts["title"].size(line)[1]
return height
@staticmethod
def _wrap_text(text, font, width):
lines = []
line = ""
for word in text.split(" "):
if font.size(line + word)[0] < width:
line += word + " "
else:
lines.append(line)
line = word + " "
lines.append(line)
return lines
def previous_page(self):
if self.page > 0 or self.story > 0:
self.page -= 1
if self.page < 0:
self.story -= 1
self.load_story(self.stories[self.story])
self.page = len(self.pages) - 1
self.display_current_page()
def next_page(self):
self.page += 1
if self.page >= len(self.pages):
if self.story < len(self.stories) - 1:
self.story += 1
self.load_story(self.stories[self.story])
self.page = 0
else:
self.generate_new_story()
self.display_current_page()
def new_story(self):
self.generate_new_story()
self.display_current_page()
def display_loading(self):
self._display_surface(self.images["loading"], 0, 0)
pygame.display.update()
def display_welcome(self):
self._display_surface(self.images["welcome"], 0, 0)
pygame.display.update()
time.sleep(5)
def display_message(self, message):
self._busy = True
self._display_surface(self.images["background"], 0, 0)
height = self._title_text_height(message)
self._display_title_text(message, self.height // 2 - height // 2)
self._busy = False
def load_story(self, story):
# Parse out the title and story and render into pages
self._busy = True
self.pages = []
if not story.startswith("Title: "):
print("Unexpected story format from ChatGPT. Missing Title.")
title = "A Story"
else:
title = story.split("Title: ")[1].split("\n\n")[0]
page = self._add_page(title)
paragraphs = story.split("\n\n")[1:]
for paragraph in paragraphs:
lines = self._wrap_text(paragraph, self.fonts["text"], self.textarea.width)
for line in lines:
self.cursor["x"] = 0
text = self.fonts["text"].render(line, True, TEXT_COLOR)
if (
self.cursor["y"] + self.fonts["text"].get_height()
> page["buffer"].get_height()
):
page = self._add_page()
self._display_surface(
text, self.cursor["x"], self.cursor["y"], page["buffer"]
)
self.cursor["y"] += self.fonts["text"].size(line)[1]
if self.cursor["y"] > 0:
self.cursor["y"] += PARAGRAPH_SPACING
print(f"Loaded story at index {self.story} with {len(self.pages)} pages")
self._busy = False
def _add_page(self, title=None):
page = {
"title" : title,
"text_position": 0,
}
if title:
page["text_position"] = self._title_text_height(title) + PARAGRAPH_SPACING
page["buffer"] = self._create_transparent_buffer(
(self.textarea.width, self.textarea.height - page["text_position"])
)
self.cursor["y"] = 0
self.pages.append(page)
return page
def consumer(self, text):
print('Current text : %s' % text)
def keyboard_example(self, layout_name: kl.LayoutName):
surface = pygame.display.set_mode([800, 480])
consumer= self.consumer
layout = VKeyboardLayout(VKeyboardLayout.QWERTY)
print(layout)
keyboard = VKeyboard(surface, consumer, layout, show_text=True)
keyboard.draw(surface)
self.buttons["enter"].show()
print(keyboard)
pygame.display.update()
enterKey= keyboard.layout.get_key_at((487,362))
print(enterKey.value)
self.keyboardOn= True
while self.keyboardOn:
events=pygame.event.get()
for event in events:
if event.type == pygame.MOUSEBUTTONDOWN:
self._handle_mousedown_event(event)
if event.type == pygame.QUIT:
print("Quit the pygame")
self._running= False
return
keyboard.update(events)
self.text= keyboard.get_text()
print("This is self text:" + self.text)
rects = keyboard.draw(surface)
pygame.display.update(rects)
keyboard.disable()
def generate_new_story(self):
self._busy = True
self.display_message("Type the story you wish to read.")
pygame.display.update()
time.sleep(5)
self.keyboard_example(kl.LayoutName.QWERTY)
if self._sleep_request:
self._busy = False
time.sleep(0.2)
return
response = self._sendchat()
if self._sleep_request:
self._busy = False
return
print(response)
self._busy = True
self.stories.append(response)
self.story = len(self.stories) - 1
self.page = 0
self._busy = False
self.load_story(response)
print("Story loaded")
def _sleep(self):
# Set a sleep request flag so that any busy threads know to finish up
self._sleep_request = True
while self._busy:
time.sleep(0.1)
self._sleep_request = False
if (
len(self._closing_times) == 0
or (time.monotonic() - self._closing_times[-1]) > QUIT_DEBOUNCE_DELAY
):
self._closing_times.append(time.monotonic())
# Check if we've closed the book a certain number of times
# within a certain number of seconds
if (
len(self._closing_times) == QUIT_CLOSES
and self._closing_times[-1] - self._closing_times[0] < QUIT_TIME_PERIOD
):
self._running = False
return
self._sleeping = True
self.sleep_check_delay = 0
#self.backlight.power = False
def _wake(self):
# Turn on the screen
#self.backlight.power = True
self.sleep_check_delay = 0.1
self._sleeping = False
def _make_story_prompt(self):
request= self.text
self.keyboardOn=False
print("Make Story Prompt activated")
self.prompt= self._prompt.format(
STORY_WORD_LENGTH=STORY_WORD_LENGTH, STORY_REQUEST=request
)
print("request formatted")
def _sendchat(self):
response = ""
print("Sending to chatGPT")
print("Prompt: ", self.prompt)
# Package up the text to send to ChatGPT
stream = openai.chat.completions.create(
model=CHATGPT_MODEL,
messages=[
{"role": "system", "content": SYSTEM_ROLE},
{"role": "user", "content": self.prompt},
],
stream=True,
)
for chunk in stream:
if chunk.choices[0].delta.content is not None:
response += chunk.choices[0].delta.content
if self._sleep_request:
return None
# Send the heard text to ChatGPT and return the result
return strip_fancy_quotes(response)
@property
def running(self):
return self._running
@property
def sleeping(self):
return self._sleeping
def parse_args():
parser = argparse.ArgumentParser()
# Book will only be rendered vertically for the sake of simplicity
parser.add_argument(
"--rotation",
type=int,
choices=[90, 270],
dest="rotation",
action="store",
default=90,
help="Rotate everything on the display by this amount",
)
return parser.parse_args()
def main(args):
book = Book(args.rotation)
try:
book.start()
while len(book.pages) == 0:
if not book.sleeping:
book.generate_new_story()
book.handle_events()
book.display_current_page()
while book.running:
book.handle_events()
except KeyboardInterrupt:
book.deinit()
pygame.quit()
finally:
book.deinit()
pygame.quit()
if __name__ == "__main__":
main(parse_args())
Bill of Materials
| Part | Note | Price | Link |
|---|---|---|---|
| RasTech Raspberry Pi 4 Starter Kit | Used to install and connect Raspberry Pi | $103.99 | Link |
| Raspberry Pi 7” Touch Screen Display | Used to Display the Storybook Screen | $85.92 | Link |
| USB Adapter | Used to connect the Raspberry Pi microchip to the computer | $4.99 | Link |
